CFA Bored Piles Construction Anchoring Drilling Rig 34.3 Mpa Max Operating Pressure KR150M

Name: CFA Bored Piles Construction Anchoring Drilling Rig 343 Mpa Max Operating Pressure KR150M
Brand: TYSIM
Price: 1 USD

Buy cheap CFA Bored Piles Construction Anchoring Drilling Rig 34.3 Mpa Max Operating Pressure KR150M product

Brand Name : TYSIM

Model Number : KR150M

Certification : CE ISO9001

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiation

Supply Ability : 10 sets per year

Delivery Time : 40 days after receiving the payment

Packaging Details : Method One: Nude packing and overall transport by sea with roll-on-roll-off ship. Method Two: Flat rack container

Torque : 150 kN.m

Max. diameter : 750 mm

Max. drilling depth : 20 m

Auxiliary winch line pull : 60 kN

Auxiliary winch line speed : 79 m/min

Mast inclination(lateral) : ±5°

Mast inclination(forward) : 5°

Max. operating pressure : 34.3 MPa

Contact Now

Technical Specification

Technical specification of KR150M rotary drilling rig (CFA construction method)
Torque	150 kN.m
Max. diameter	750 mm
Max. drilling depth	17 m
Max. crowd pull	400 kN
Auxiliary winch line pull	60 kN
Auxiliary winch line speed	79 m/min
Mast inclination(lateral)	±5°
Mast inclination(forward)	5°
Mast inclination(backward)	15°
Max. operating pressure	34.3 MPa
Pilot pressure	4 Mpa
Transport height	3305 mm
Transport width	3100 mm
Transport length	13000 mm
Overall weight	42 t

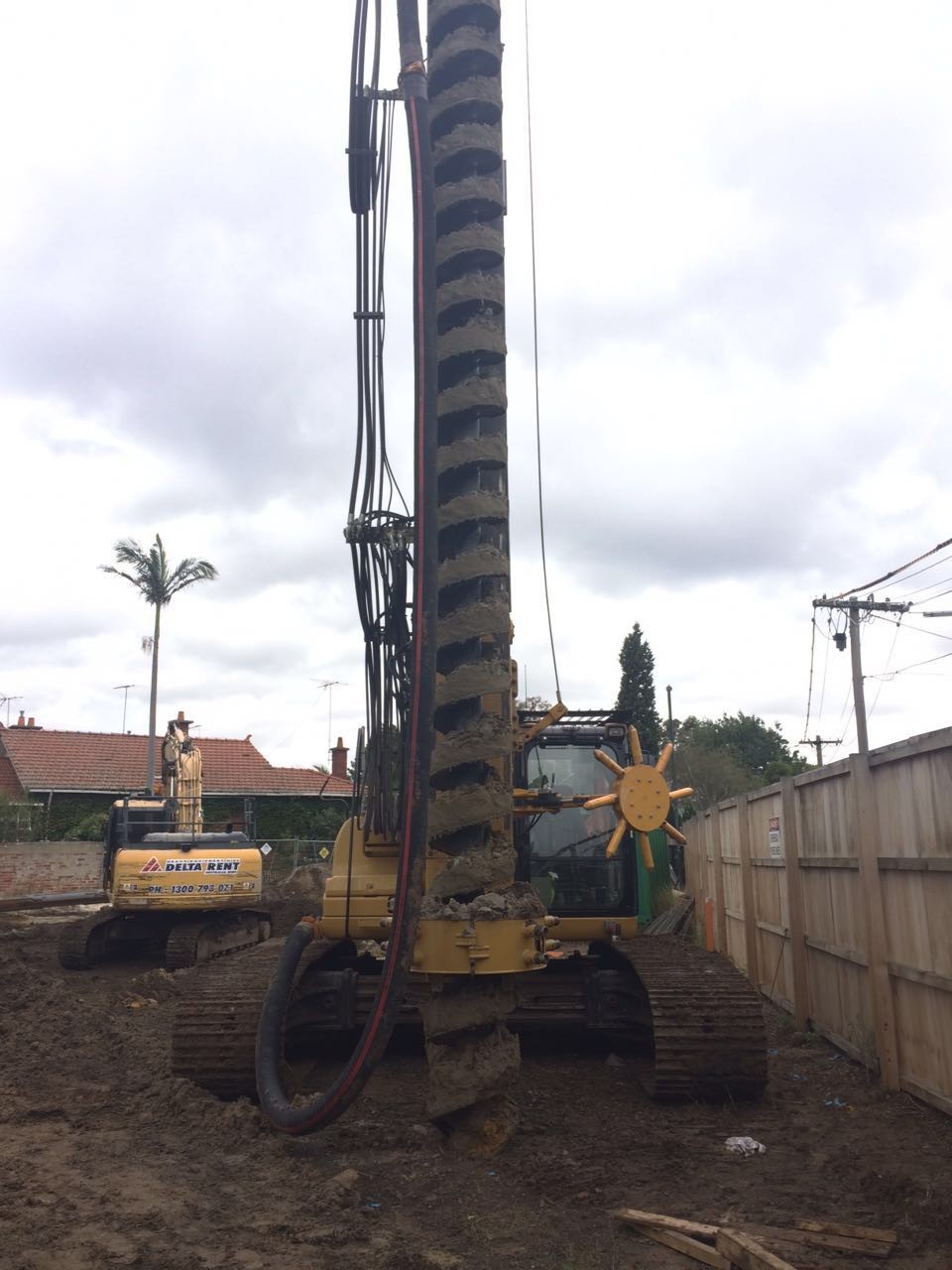

Construction photo

CFA Bored Piles Construction Anchoring Drilling Rig 34.3 Mpa Max Operating Pressure KR150M

packing&shipping

Our Services

Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
