20m Small Borehole Drilling Hydraulic Piling Machine Max. drilling diameter 1200mm High Stability Low Cost

Product Categories

TYSIM PILING EQUIPMENT CO., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 20m Small Borehole Drilling Hydraulic Piling Machine Max drilling diameter 1200mm High Stability Low Cost
Brand: TYSIM
Price: 1 USD

Brand Name : TYSIM

Model Number : KR60A

Certification : CE/ISO9001

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 30 sets per month

Delivery Time : 45 working days after received your payment

Packaging Details : Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.

Torque : 60 kN.m

Max. drilling diameter : 1200 mm

Max. drilling depth : 20m

Speed of rotation : 8~30 rpm

Max. crowd pressure : 100 kN.m

Max. crowd pull : 60 kN.m

Main winch line pull : 90 kN.m

Auxiliary winch line pull : 45 kN.m

Contact Now

China Brand Chassis: KR60A,KR90A,KR125A,KR150A

KR60A is the mainstream urban construction piling machine in China

Other models are mostly used in civil and industrial construction

Technical Specification

Technical Specification of KR60ARotary Drilling Rig
Type	KR60A
Torque	60 kN.m
Max. drilling diameter	1200 mm
Max. drilling depth	120 m
Speed of rotation	8~30 rpm
Max. crowd pressure	60 kN
Max. crowd pull	90 kN
Main winch line pull	65 kN
Main winch line speed	48 m/min
Auxiliary winch line pull	20 kN
Auxiliary winch line speed	48 m/min
Stroke(crowd system)	2000 mm
Mast inclination(lateral)	±3°
Mast inclination(forward)	4°
Max. operating pressure	34.3 MPa
Pilot pressure	3.9 MPa
Travel speed	2.8 km/h
Traction force	98 kN
Operating height	10600 mm
Operating width	2700 mm
Transport height	3250 mm
Transport width	2700 mm
Transport length	9500 mm
Overall weight	20t

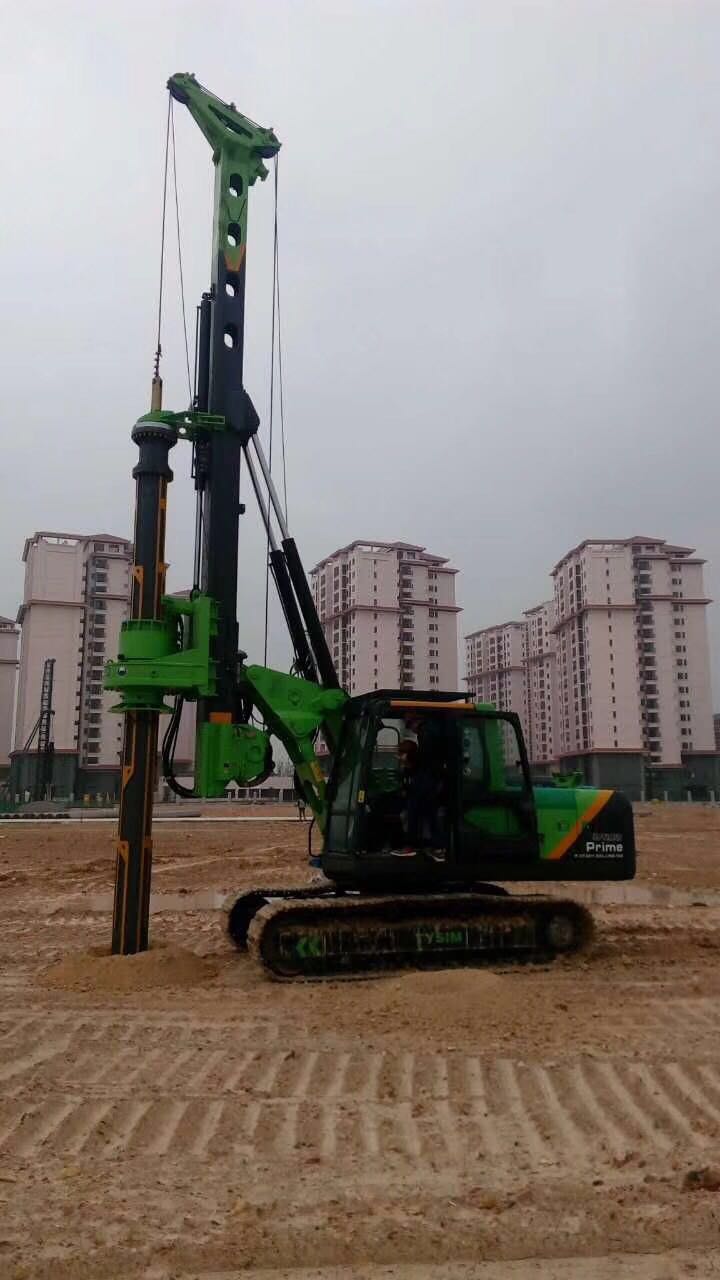

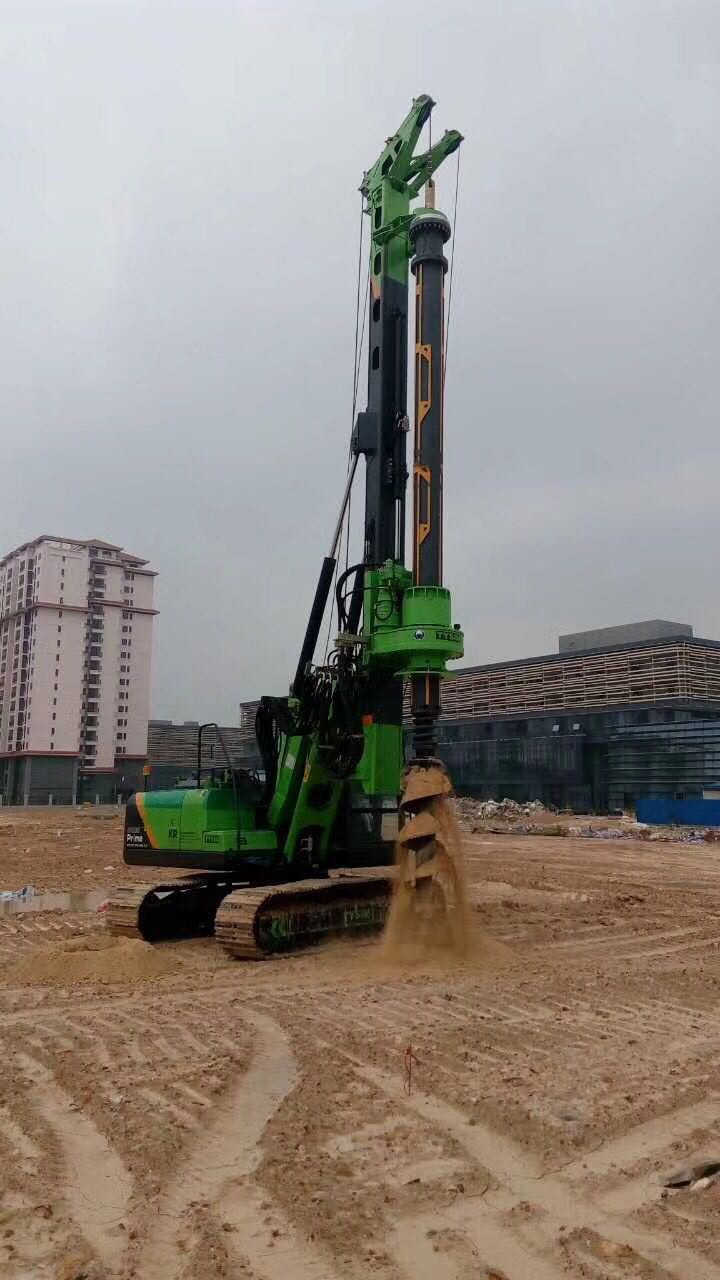

Construction Photos
